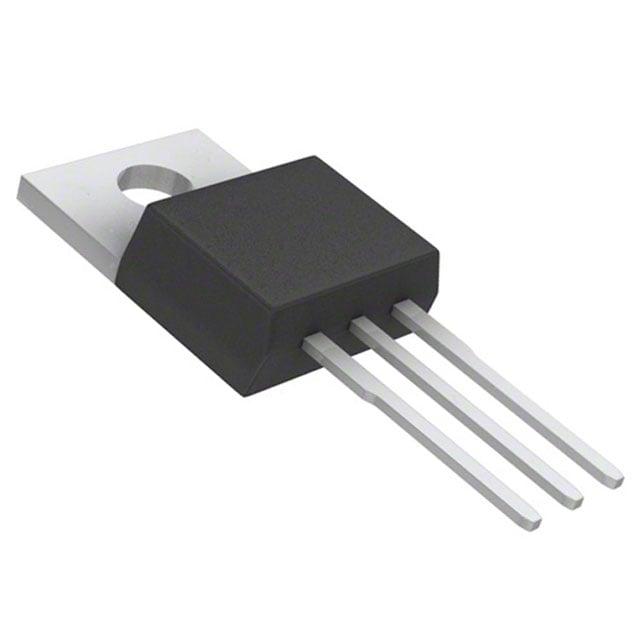

FCP16N60
Manufacturer
onsemi
Description
N-Channel 600 V 16A (Tc) 167W (Tc) Through Hole TO-220-3
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
16A (Tc)
10V
260mOhm @ 8A, 10V
5V @ 250µA
70 nC @ 10 V
±30V
2250 pF @ 25 V
167W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-220-3
TO-220-3
₹648.72
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹648.72
₹648.72
10
₹339.02
₹3390.20
25
₹339.02
₹8475.50
50
₹339.02
₹16951.01
100
₹308.43
₹30843.18
500
₹274.72
₹137359.23
1000
₹274.72
₹274720.50
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
16A (Tc)
10V
260mOhm @ 8A, 10V
5V @ 250µA
70 nC @ 10 V
±30V
2250 pF @ 25 V
167W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-220-3
TO-220-3
