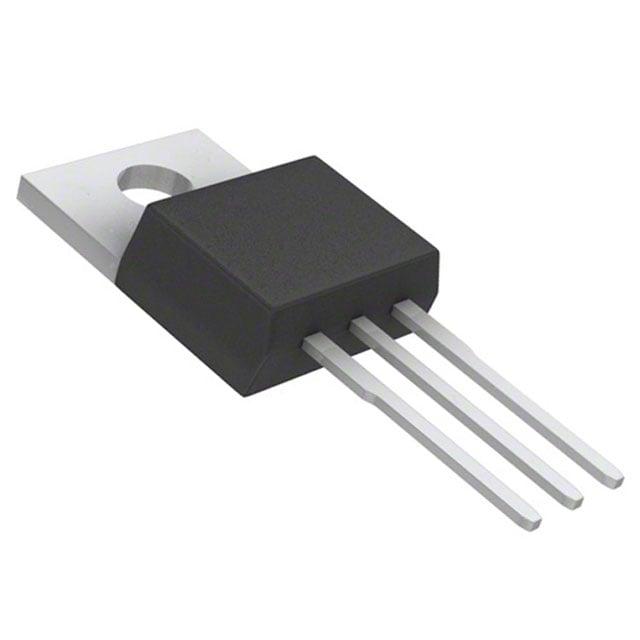

FCP190N60E
Manufacturer
onsemi
Description
N-Channel 600 V 20.6A (Tc) 208W (Tc) Through Hole TO-220-3
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
20.6A (Tc)
10V
190mOhm @ 10A, 10V
3.5V @ 250µA
82 nC @ 10 V
±20V
3175 pF @ 25 V
208W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-220-3
TO-220-3
₹619.46
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹619.46
₹619.46
10
₹329.40
₹3294.03
25
₹329.40
₹8235.05
50
₹322.39
₹16119.56
100
₹293.64
₹29364.18
500
₹243.28
₹121641.01
1000
₹228.14
₹228144.27
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
20.6A (Tc)
10V
190mOhm @ 10A, 10V
3.5V @ 250µA
82 nC @ 10 V
±20V
3175 pF @ 25 V
208W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-220-3
TO-220-3
