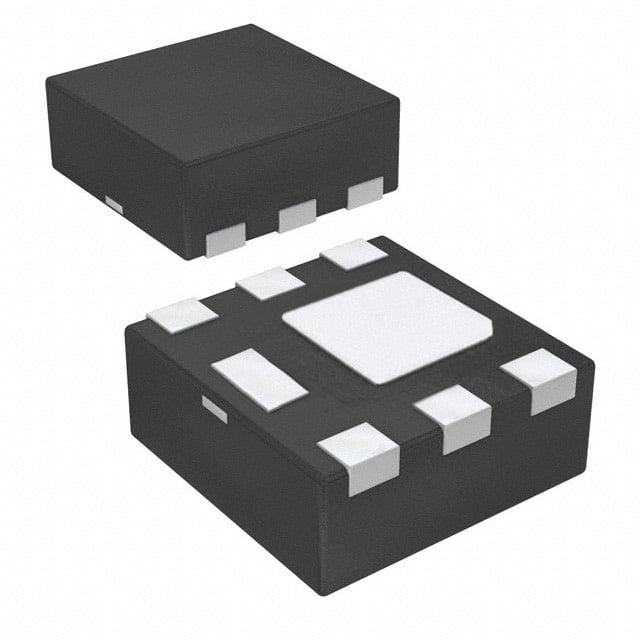

FDMA7670
Manufacturer
onsemi
Description
N-Channel 30 V 11A (Ta) 2.4W (Ta) Surface Mount 6-MicroFET (2x2)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
11A (Ta)
4.5V, 10V
15mOhm @ 11A, 10V
3V @ 250µA
22 nC @ 10 V
±20V
1360 pF @ 15 V
2.4W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
6-MicroFET (2x2)
6-WDFN Exposed Pad
₹29.29
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
11A (Ta)
4.5V, 10V
15mOhm @ 11A, 10V
3V @ 250µA
22 nC @ 10 V
±20V
1360 pF @ 15 V
2.4W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
6-MicroFET (2x2)
6-WDFN Exposed Pad
