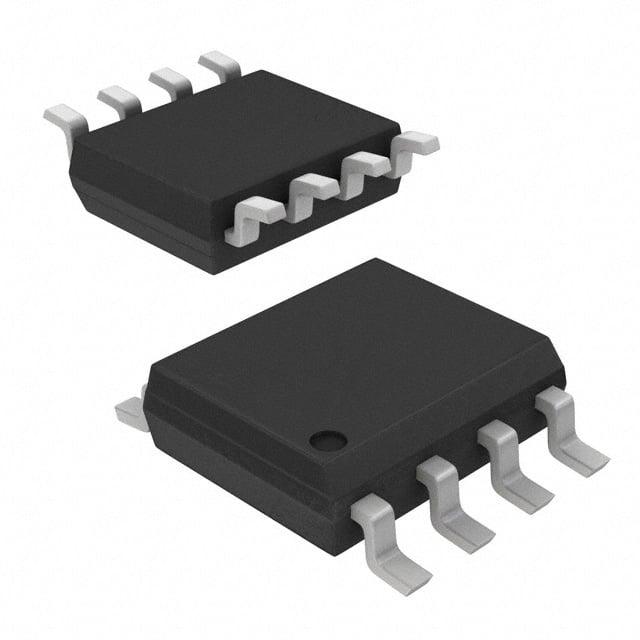

FDS6679AZ
Manufacturer
onsemi
Description
ONSEMI - FDS6679AZ - Power MOSFET, P Channel, 30 V, 13 A, 7700 ohm, SOIC, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
30 V
13A (Ta)
4.5V, 10V
9.3mOhm @ 13A, 10V
3V @ 250µA
96 nC @ 10 V
±25V
3845 pF @ 15 V
2.5W (Ta)
-55°C ~ 155°C (TJ)
Surface Mount
8-SOIC
8-SOIC (0.154", 3.90mm Width)
₹186.45
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹186.45
₹186.45
10
₹104.16
₹1041.58
25
₹104.16
₹2603.95
50
₹93.61
₹4680.31
100
₹77.34
₹7734.48
500
₹60.16
₹30081.47
1000
₹55.35
₹55347.25
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
30 V
13A (Ta)
4.5V, 10V
9.3mOhm @ 13A, 10V
3V @ 250µA
96 nC @ 10 V
±25V
3845 pF @ 15 V
2.5W (Ta)
-55°C ~ 155°C (TJ)
Surface Mount
8-SOIC
8-SOIC (0.154", 3.90mm Width)
