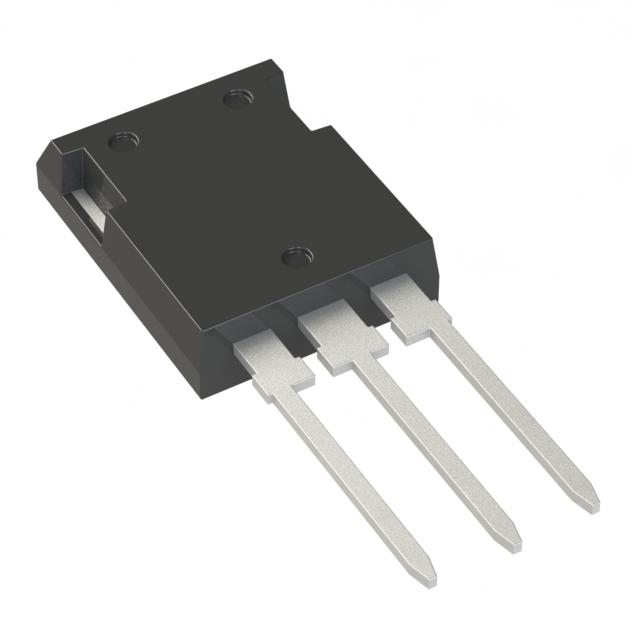

FGY60T120SWD
Manufacturer
onsemi
Description
IGBT Field Stop 1200 V 105 A 635 W Through Hole TO-247-3
Datasheet
DownloadProduct Attributes
Type
Type
Collector Emitter Breakdown Voltage
Current - Collector (Ic) (Max)
Continuous Collector Current
Vce(on) (Max) @ Vge, Ic
Output Power
Energy
Input
Gate Charge
Td (on/off) @ 25°C
Test Condition
Reverse Recovery Time
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Field Stop
1200 V
105 A
240 A
2V @ 15A, 60A
635 W
5.7mJ (on), 2.8mJ (off)
Standard
174 nC
28.8ns/153.6ns
600V, 60A, 4.7Ohm, 15V
200 ns
-55°C ~ 175°C (TJ)
Through Hole
TO-247-3 Variant
TO-247-3
₹949.77
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹949.77
₹949.77
10
₹560.60
₹5605.96
25
₹560.60
₹14014.90
50
₹550.16
₹27508.24
100
₹550.16
₹55016.48
Product Attributes
Type
Type
Collector Emitter Breakdown Voltage
Current - Collector (Ic) (Max)
Continuous Collector Current
Vce(on) (Max) @ Vge, Ic
Output Power
Energy
Input
Gate Charge
Td (on/off) @ 25°C
Test Condition
Reverse Recovery Time
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Field Stop
1200 V
105 A
240 A
2V @ 15A, 60A
635 W
5.7mJ (on), 2.8mJ (off)
Standard
174 nC
28.8ns/153.6ns
600V, 60A, 4.7Ohm, 15V
200 ns
-55°C ~ 175°C (TJ)
Through Hole
TO-247-3 Variant
TO-247-3
