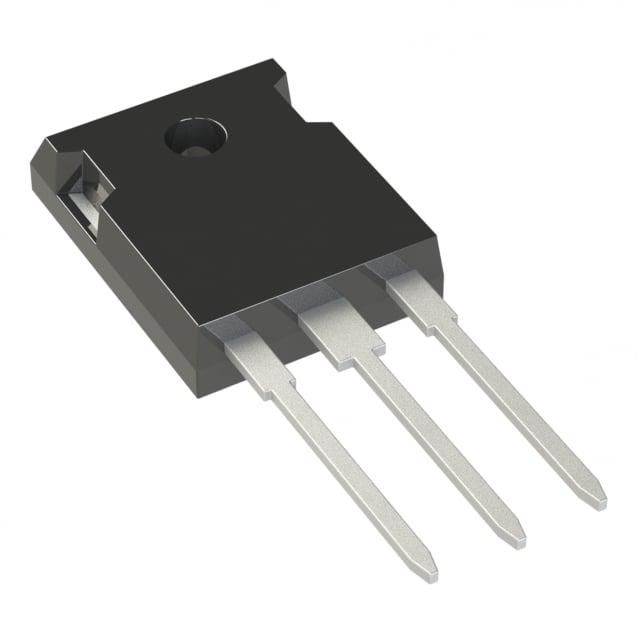

IHW40N120R5XKSA1
Manufacturer
Infineon
Description
INFINEON - IHW40N120R5XKSA1 - IGBT, 80 A, 1.55 V, 394 W, 1.2 kV, TO-247, 3 Pins
Datasheet
DownloadProduct Attributes
Type
Type
Collector Emitter Breakdown Voltage
Current - Collector (Ic) (Max)
Continuous Collector Current
Vce(on) (Max) @ Vge, Ic
Output Power
Energy
Input
Gate Charge
Td (on/off) @ 25°C
Test Condition
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Trench Field Stop
1200 V
80 A
120 A
1.85V @ 15V, 40A
394 W
1.6mJ (off)
Standard
310 nC
-/420ns
600V, 40A, 10Ohm, 15V
-40°C ~ 175°C (TJ)
Through Hole
TO-247-3
PG-TO247-3
₹739.20
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹739.20
₹739.20
10
₹415.49
₹4154.85
25
₹415.48
₹10387.12
50
₹415.48
₹20774.22
100
₹315.77
₹31576.88
500
₹270.19
₹135093.17
1000
₹270.19
₹270186.33
Product Attributes
Type
Type
Collector Emitter Breakdown Voltage
Current - Collector (Ic) (Max)
Continuous Collector Current
Vce(on) (Max) @ Vge, Ic
Output Power
Energy
Input
Gate Charge
Td (on/off) @ 25°C
Test Condition
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Trench Field Stop
1200 V
80 A
120 A
1.85V @ 15V, 40A
394 W
1.6mJ (off)
Standard
310 nC
-/420ns
600V, 40A, 10Ohm, 15V
-40°C ~ 175°C (TJ)
Through Hole
TO-247-3
PG-TO247-3
