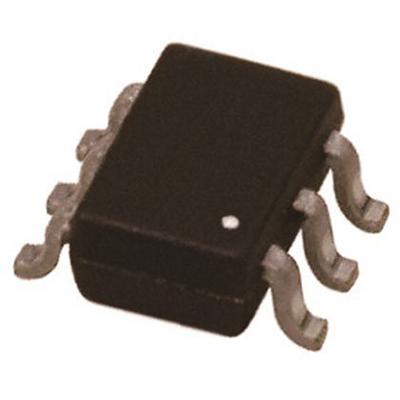

IMZ1AT108
Manufacturer
ROHM
Description
IMZ1A Series 50 V 150 mA Surface Mount Dual NPN/PNP Digital Transistor - SC-74
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Voltage (VCEO)
Continuous Collector Current
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Operating Temperature
Max Output Current
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Transition Frequency
Width
Description
SMD/SMT
60 V
50 V
50 V
-150 mA
150 mA
Dual
-6 V
180 MHz
1 mm
120
Lead Free
2.9 mm
Production (Last Updated: 4 years ago)
50 V
150 mA
100 MHz
150 °C
150 mA
300 mW
-55 °C
Surface Mount
6
6
50 V
Cut Tape
NPN, PNP
300 mW
No
No SVHC
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
140 MHz
1.6 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹46.24
Total Price
₹138.71
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹138.71
₹138.71
10
₹13.63
₹136.32
25
₹13.63
₹340.80
50
₹13.63
₹681.59
100
₹6.48
₹648.42
500
₹13.80
₹6898.41
1000
₹12.37
₹12368.77
Product Attributes
