IPD30N03S4L14ATMA1
Manufacturer
Infineon
Description

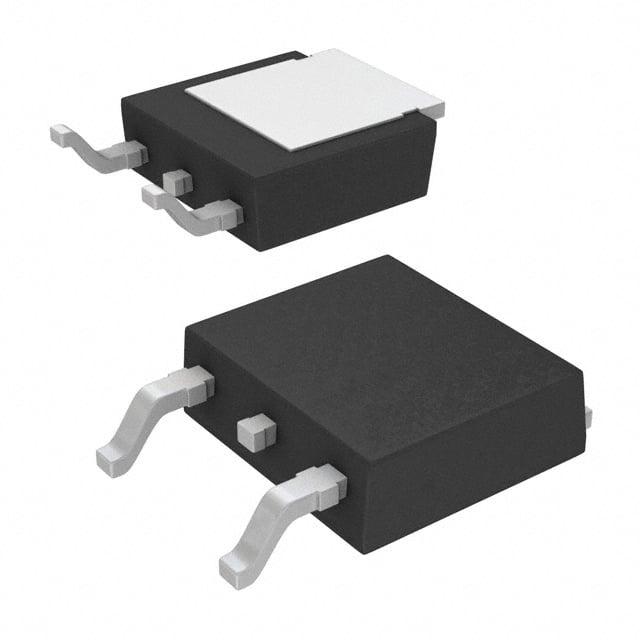

INFINEON - IPD30N03S4L14ATMA1 - Power MOSFET, N Channel, 30 V, 30 A, 0.0136 ohm, TO-252 (DPAK), Surface Mount
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
30A (Tc)
4.5V, 10V
13.6mOhm @ 30A, 10V
2.2V @ 10µA
14 nC @ 10 V
±16V
980 pF @ 25 V
31W (Tc)
-55°C ~ 175°C (TJ)
Automotive
AEC-Q101
Surface Mount
PG-TO252-3-11
TO-252-3, DPAK (2 Leads + Tab), SC-63
₹141.11
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹141.11
₹141.11
10
₹83.34
₹833.35
25
₹83.33
₹2083.36
50
₹83.33
₹4166.71
100
₹58.12
₹5812.20
500
₹45.05
₹22524.43
1000
₹41.00
₹40999.32
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
30A (Tc)
4.5V, 10V
13.6mOhm @ 30A, 10V
2.2V @ 10µA
14 nC @ 10 V
±16V
980 pF @ 25 V
31W (Tc)
-55°C ~ 175°C (TJ)
Automotive
AEC-Q101
Surface Mount
PG-TO252-3-11
TO-252-3, DPAK (2 Leads + Tab), SC-63
