IPN95R1K2P7ATMA1
Manufacturer
Infineon
Description

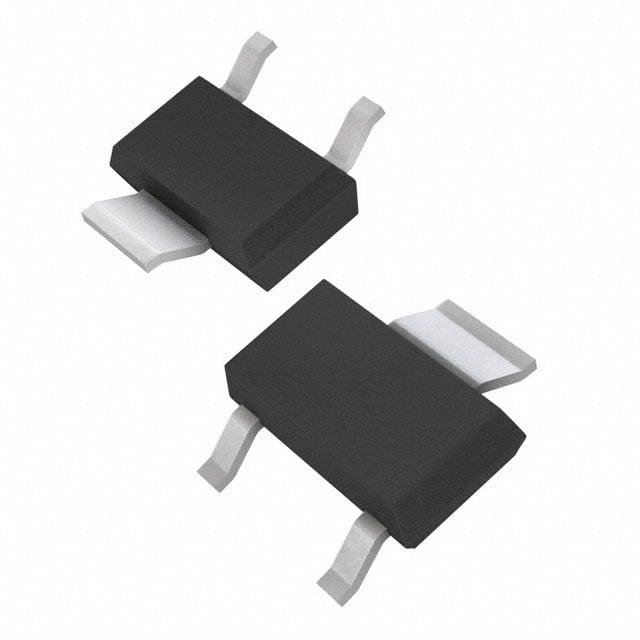

N-Channel 950 V 6A (Tc) 7W (Tc) Surface Mount PG-SOT223
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
950 V
6A (Tc)
10V
1.2Ohm @ 2.7A, 10V
3.5V @ 140µA
15 nC @ 10 V
±20V
478 pF @ 400 V
7W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PG-SOT223
TO-261-4, TO-261AA
₹218.69
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹218.69
₹218.69
10
₹138.35
₹1383.48
25
₹138.42
₹3460.53
50
₹138.42
₹6921.06
100
₹92.60
₹9259.80
500
₹72.95
₹36476.47
1000
₹66.63
₹66632.13
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
950 V
6A (Tc)
10V
1.2Ohm @ 2.7A, 10V
3.5V @ 140µA
15 nC @ 10 V
±20V
478 pF @ 400 V
7W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PG-SOT223
TO-261-4, TO-261AA
