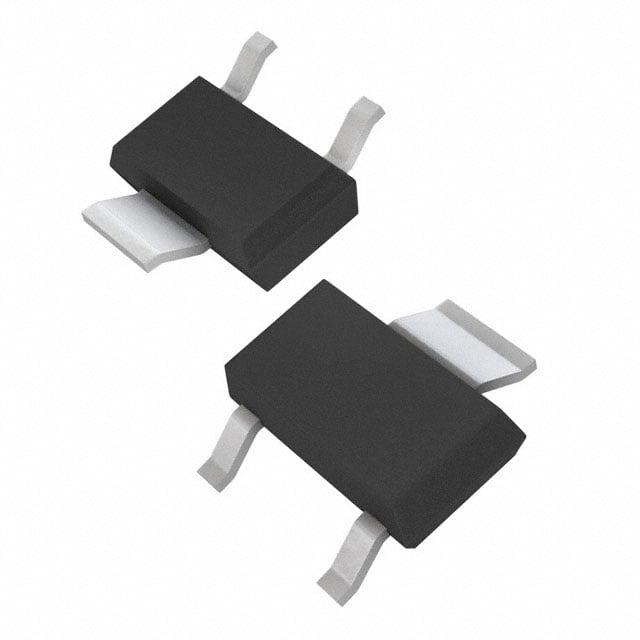

IPN95R3K7P7ATMA1
Manufacturer
Infineon
Description
INFINEON - IPN95R3K7P7ATMA1 - Power MOSFET, N Channel, 950 V, 2 A, 3.7 ohm, SOT-223, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
950 V
2A (Tc)
10V
3.7Ohm @ 800mA, 10V
3.5V @ 40µA
6 nC @ 10 V
±20V
196 pF @ 400 V
6W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PG-SOT223
TO-261-4, TO-261AA
₹188.63
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹188.63
₹188.63
10
₹88.07
₹880.70
25
₹88.07
₹2201.75
50
₹88.07
₹4403.50
100
₹78.25
₹7825.19
500
₹61.04
₹30521.69
1000
₹61.68
₹61678.35
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
950 V
2A (Tc)
10V
3.7Ohm @ 800mA, 10V
3.5V @ 40µA
6 nC @ 10 V
±20V
196 pF @ 400 V
6W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PG-SOT223
TO-261-4, TO-261AA
