IPW60R041P6FKSA1
Manufacturer
Infineon
Description

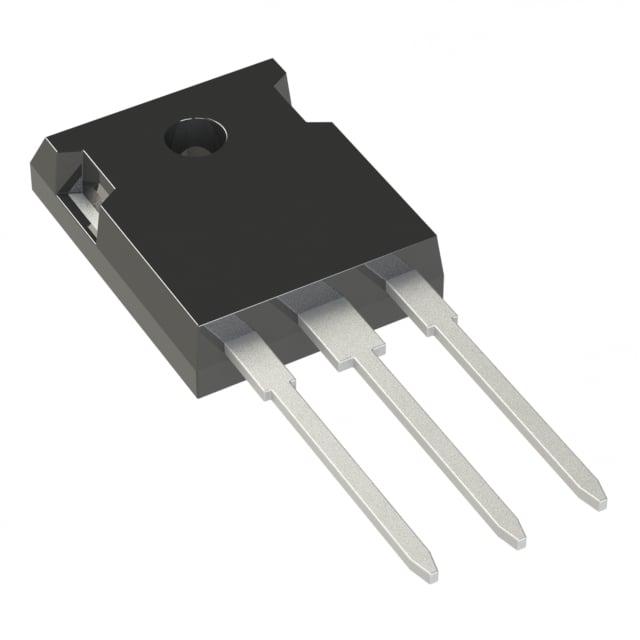

INFINEON - IPW60R041P6FKSA1 - Power MOSFET, N Channel, 600 V, 77.5 A, 0.041 ohm, TO-247, Through Hole
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
77.5A (Tc)
10V
41mOhm @ 35.5A, 10V
4.5V @ 2.96mA
170 nC @ 10 V
±20V
8180 pF @ 100 V
481W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
PG-TO247-3
TO-247-3
₹1223.12
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1223.12
₹1223.12
10
₹724.68
₹7246.77
25
₹724.68
₹18116.92
50
₹724.68
₹36233.83
100
₹666.25
₹66624.79
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
77.5A (Tc)
10V
41mOhm @ 35.5A, 10V
4.5V @ 2.96mA
170 nC @ 10 V
±20V
8180 pF @ 100 V
481W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
PG-TO247-3
TO-247-3
