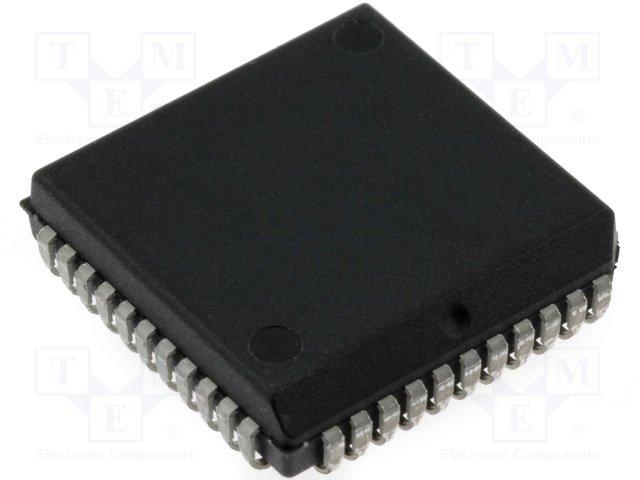

IR2132JPBF
Manufacturer
Infineon
Description
Tube IR2132JPBF Half-Bridge 1996 gate driver 125ns -40C~150C TJ 250mA 500mA 2W
Datasheet
DownloadProduct Attributes
Type
Case/Package
Channel Type
Fall Time
Height
Length
Lifecycle Status
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Channels
Number of Drivers
Number of Outputs
Number of Pins
Output Current
Output Voltage
Package Quantity
Power Dissipation
Propagation Delay
Radiation Hardening
Resistance
Rise Time
RoHS
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
PLCC
3-Phase
55 ns
4.57 mm
16.66 mm
Production (Last Updated: 4 years ago)
125 °C
500 mA
2 W
20 V
-40 °C
10 V
Surface Mount
3 mA
6
6
6
44
200 mA
20 V
1134
2 W
850 ns
No
75 Ω
125 ns
Compliant
550 ns
850 ns
16.66 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹600.21
Total Price
₹600.21
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹600.21
₹600.21
10
₹528.99
₹5289.85
25
₹529.00
₹13225.07
50
₹510.88
₹25544.05
100
₹484.22
₹48422.28
500
₹483.96
₹241978.00
1000
₹483.96
₹483955.99
