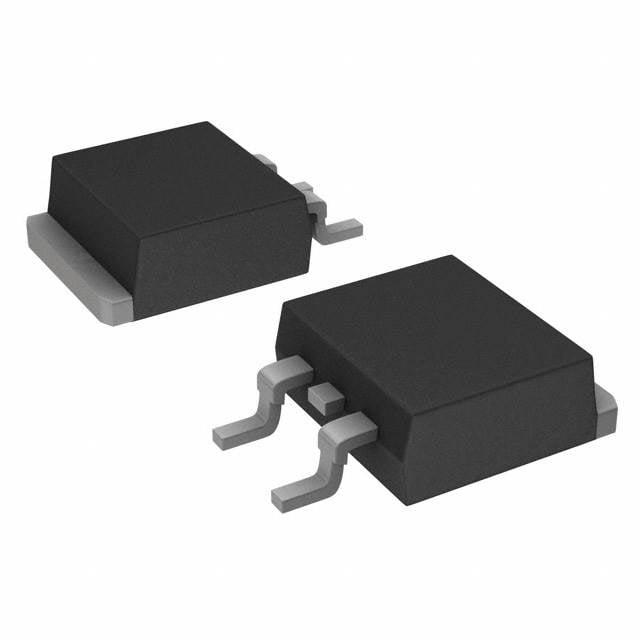

IRF3205STRLPBF
Manufacturer
Infineon
Description
INFINEON - IRF3205STRLPBF - Power MOSFET, N Channel, 55 V, 110 A, 8000 ohm, TO-263 (D2PAK), Surface Mount
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
55 V
110A (Tc)
10V
8mOhm @ 62A, 10V
4V @ 250µA
146 nC @ 10 V
±20V
3247 pF @ 25 V
200W (Tc)
-55°C ~ 175°C (TJ)
Surface Mount
D2PAK
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
₹313.85
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹313.85
₹313.85
10
₹198.92
₹1989.21
25
₹198.96
₹4973.94
50
₹193.82
₹9690.77
100
₹137.93
₹13792.71
500
₹103.87
₹51937.23
1000
₹93.99
₹93986.05
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
55 V
110A (Tc)
10V
8mOhm @ 62A, 10V
4V @ 250µA
146 nC @ 10 V
±20V
3247 pF @ 25 V
200W (Tc)
-55°C ~ 175°C (TJ)
Surface Mount
D2PAK
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
