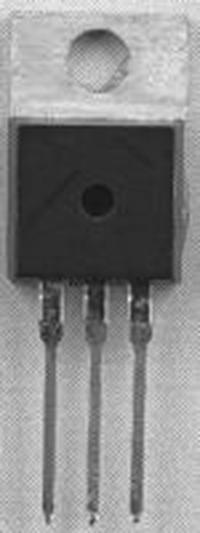

IRFZ44NPBF

Manufacturer

Infineon

Description

MOSFET, Power; N-Ch; VDSS 55V; RDS(ON) 17.5 Milliohms; ID 49A; TO-220AB; PD 94W; -55deg

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Contact Plating

Continuous Drain Current (ID)

Current Rating

Drain to Source Breakdown Voltage

Drain to Source Resistance

Drain to Source Voltage (Vdss)

Dual Supply Voltage

Element Configuration

Fall Time

Gate to Source Voltage (Vgs)

Height

Input Capacitance

Lead Free

Lead Pitch

Length

Lifecycle Status

Max Junction Temperature (Tj)

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Nominal Vgs

Number of Elements

Number of Pins

On-State Resistance

Package Quantity

Packaging

Power Dissipation

Radiation Hardening

Rds On Max

REACH SVHC

Recovery Time

Resistance

Rise Time

RoHS

Schedule B

Termination

Threshold Voltage

Turn-Off Delay Time

Turn-On Delay Time

Voltage Rating (DC)

Width

Description

TO-220AB

Tin

29 A

49 A

55 V

17.5 mΩ

55 V

55 V

Single

45 ns

20 V

8.77 mm

1.47 nF

Lead Free

2.54 mm

10.668 mm

Production (Last Updated: 4 years ago)

175 °C

175 °C

94 W

-55 °C

Through Hole

2.1 V

1

3

17.5 mΩ

1000

Bulk

83 W

No

17.5 mΩ

No SVHC

95 ns

17.5 MΩ

60 ns

Compliant

8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080

Through Hole

2.1 V

44 ns

12 ns

55 V

4.826 mm
