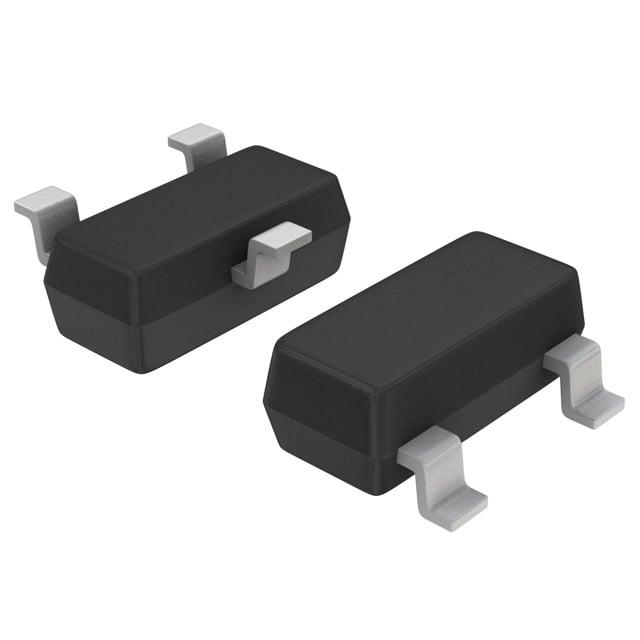

IRLML0060TRPBF
Manufacturer
Infineon
Description
INFINEON - IRLML0060TRPBF - Power MOSFET, N Channel, 60 V, 2.7 A, 0.092 ohm, SOT-23, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
60 V
2.7A (Ta)
4.5V, 10V
92mOhm @ 2.7A, 10V
2.5V @ 25µA
2.5 nC @ 4.5 V
±16V
290 pF @ 25 V
1.25W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
Micro3™/SOT-23
TO-236-3, SC-59, SOT-23-3
₹71.24
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹30.08
₹300.82
25
₹30.08
₹752.03
50
₹28.36
₹1418.03
100
₹26.64
₹2663.98
500
₹20.82
₹10407.85
1000
₹20.82
₹20816.72
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
60 V
2.7A (Ta)
4.5V, 10V
92mOhm @ 2.7A, 10V
2.5V @ 25µA
2.5 nC @ 4.5 V
±16V
290 pF @ 25 V
1.25W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
Micro3™/SOT-23
TO-236-3, SC-59, SOT-23-3
