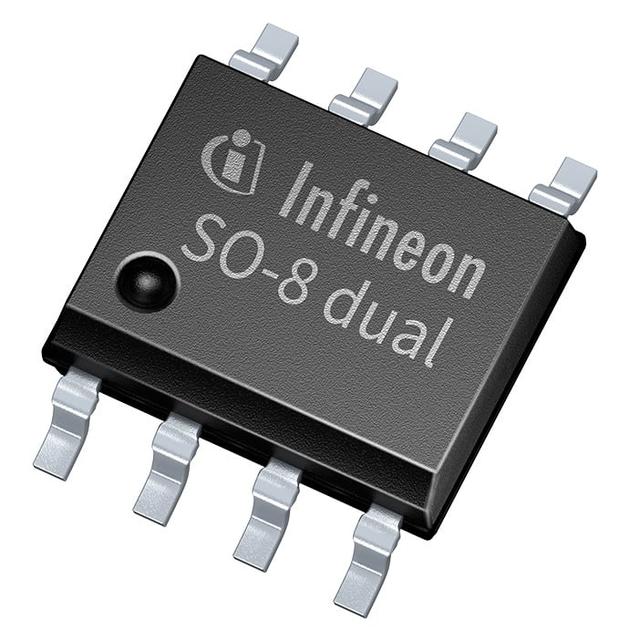

ISA220280C03LMDSXTMA1
Manufacturer
Infineon
Description
INFINEON - ISA220280C03LMDSXTMA1 - Dual MOSFET, Complementary N and P Channel, 30 V, 30 V, 8.4 A, 8.1 A, 0.022 ohm
Datasheet
DownloadProduct Attributes
Type
Technology
Configuration
Drain to Source Voltage (Vdss)
Continuous Collector Current
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Input Capacitance
Power - Max
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
MOSFET (Metal Oxide)
N and P-Channel
30V
6.3A (Ta), 8.4A (Tc), 6.1A (Ta), 8.1A (Tc)
22mOhm @ 8.4A, 10V, 28mOhm @ 8.1A, 10V
2.7V @ 1mA
13.4nC @ 10V
1400pF @ 15V
1.4W (Ta), 2.5W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
8-SOIC (0.154", 3.90mm Width)
PG-DSO-8-920
₹125.74
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹125.74
₹125.74
10
₹58.08
₹580.84
25
₹58.08
₹1452.10
50
₹58.08
₹2904.19
100
₹51.53
₹5152.70
Product Attributes
Type
Technology
Configuration
Drain to Source Voltage (Vdss)
Continuous Collector Current
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Input Capacitance
Power - Max
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
MOSFET (Metal Oxide)
N and P-Channel
30V
6.3A (Ta), 8.4A (Tc), 6.1A (Ta), 8.1A (Tc)
22mOhm @ 8.4A, 10V, 28mOhm @ 8.1A, 10V
2.7V @ 1mA
13.4nC @ 10V
1400pF @ 15V
1.4W (Ta), 2.5W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
8-SOIC (0.154", 3.90mm Width)
PG-DSO-8-920
