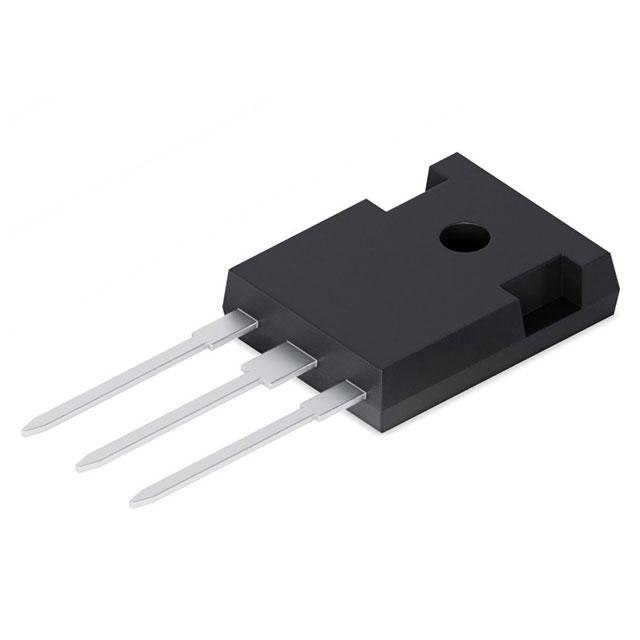

IXFH90N65X3
Manufacturer
IXYS
Description
LITTELFUSE - IXFH90N65X3 - Power MOSFET, N Channel, 650 V, 90 A, 0.033 ohm, TO-247, Through Hole
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
650 V
90A (Tc)
10V
33mOhm @ 45A, 10V
5.2V @ 4mA
95 nC @ 10 V
±20V
6080 pF @ 25 V
960W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-247 (IXFH)
TO-247-3
₹2289.63
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹2289.63
₹2289.63
10
₹1429.46
₹14294.64
25
₹1429.46
₹35736.59
50
₹1429.46
₹71473.18
100
₹1429.46
₹142946.37
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
650 V
90A (Tc)
10V
33mOhm @ 45A, 10V
5.2V @ 4mA
95 nC @ 10 V
±20V
6080 pF @ 25 V
960W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-247 (IXFH)
TO-247-3
