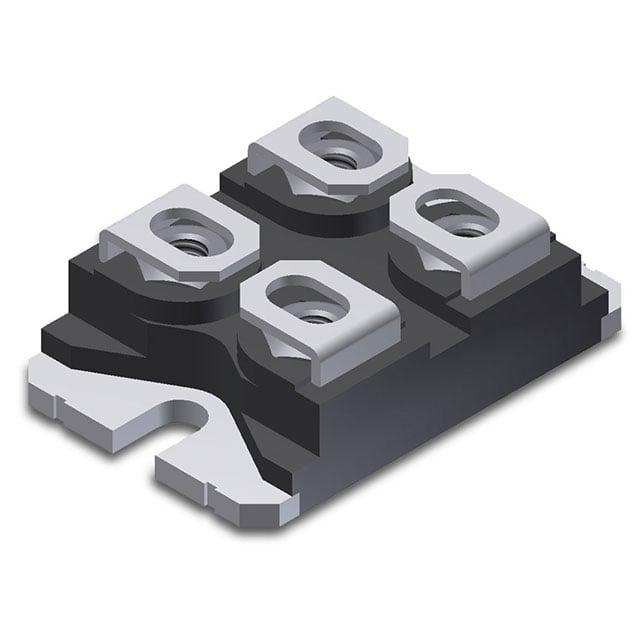

IXFN56N90P
Manufacturer
IXYS
Description
N-Channel 900 V 56A (Tc) 1000W (Tc) Chassis Mount SOT-227B
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
900 V
56A (Tc)
10V
135mOhm @ 28A, 10V
6.5V @ 3mA
375 nC @ 10 V
±30V
23000 pF @ 25 V
1000W (Tc)
-55°C ~ 150°C (TJ)
Chassis Mount
SOT-227B
SOT-227-4, miniBLOC
₹9111.35
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹9111.35
₹9111.35
10
₹7511.87
₹75118.71
25
₹7511.87
₹187796.78
50
₹6950.48
₹347524.20
100
₹6950.49
₹695049.43
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
900 V
56A (Tc)
10V
135mOhm @ 28A, 10V
6.5V @ 3mA
375 nC @ 10 V
±30V
23000 pF @ 25 V
1000W (Tc)
-55°C ~ 150°C (TJ)
Chassis Mount
SOT-227B
SOT-227-4, miniBLOC
