KSA992FATA
Manufacturer
onsemi
Description

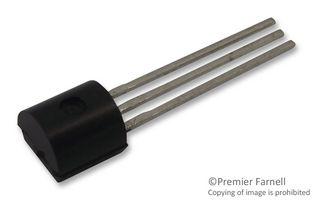

KSA992 Series PNP 500 mW 120 V 50 mA Through Hole Epitaxial Transistor - TO-92
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Emitter Base Voltage (VEBO)
Gain Bandwidth Product
Height
hFE Min
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Polarity
Power Dissipation
Radiation Hardening
RoHS
Schedule B
Transition Frequency
Weight
Description
TO-226-3
-120 V
120 V
-90 mV
-120 V
-5 V
100 MHz
8.77 mm
300
Lead Free
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
120 V
-50 mA
150 °C
150 °C
500 mW
-55 °C
Through Hole
1
3
PNP
500 mW
No
Compliant
8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080
100 MHz
240 mg
In Stock
Quantity
MOQ : 4
Per Unit Price
₹29.34
Total Price
₹117.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.38
₹117.38
10
₹18.41
₹184.06
25
₹18.37
₹459.27
50
₹18.37
₹918.54
100
₹8.05
₹804.64
500
₹6.67
₹3333.05
1000
₹5.26
₹5264.40
