L7805CDT-TR
Manufacturer
STMicroelectronics
Description

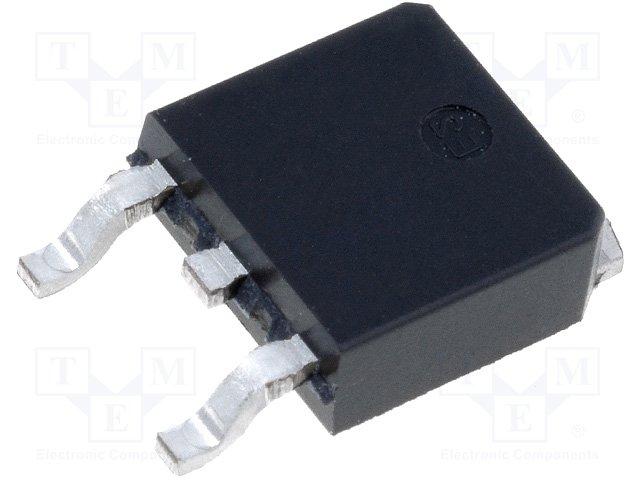

L7805 Series 1.5 A 5 V SMT Three Terminal Voltage Regulator - DPAK
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Dropout Voltage
Height
Lead Free
Length
Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Mount
Number of Channels
Number of Outputs
Number of Pins
Number of Regulators
Output Current
Output Type
Output Voltage
Packaging
Polarity
Power Supply Rejection Ratio (PSRR)
Quiescent Current
Radiation Hardening
RoHS
Schedule B
Width
Description
DPAK
Tin
2 V
2.4 mm
Lead Free
6.6 mm
Production (Last Updated: 5 years ago)
35 V
125 °C
1.5 A
7 V
-40 °C
5 V
Surface Mount
1
1
3
1
1.5 A
Fixed
5 V
Tape and Reel
Positive
62 dB
8 mA
No
Compliant
8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000
6.2 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹96.92
Total Price
₹193.85
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹193.85
₹193.85
10
₹63.13
₹631.33
25
₹63.06
₹1576.55
50
₹63.06
₹3153.10
100
₹51.83
₹5183.15
500
₹49.63
₹24816.68
1000
₹46.04
₹46035.66
