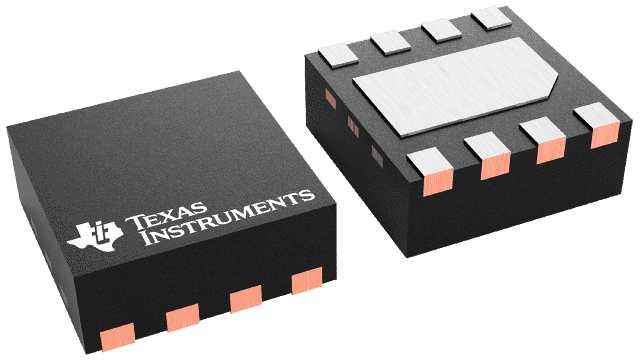

LM27761DSGT
Manufacturer
Texas Instruments
Description
Switched Capacitor Converter, 0.25A, 2300kHz Switching Freq-Max, PDSO8
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Nominal Supply Current
Number of Outputs
Number of Pins
Output Configuration
Output Current
Output Type
Output Voltage
Quiescent Current
REACH SVHC
RoHS
Schedule B
Switching Frequency
Synchronous Rectifier
Thickness
Topology
Width
Description
85 °C
800 µm
Lead Free
2 mm
Production (Last Updated: 1 day ago)
ACTIVE (Last Updated: 1 day ago)
5.5 V
125 °C
85 °C
-5 V
5.5 V
2.7 V
-40 °C
-1.5 V
2.7 V
Surface Mount
370 µA
1
8
Negative
250 mA
Adjustable
-5 V
370 µA
No
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
2 MHz
No
750 µm
Charge Pump
2 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹151.74
Total Price
₹151.74
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹151.74
₹151.74
10
₹111.33
₹1113.34
25
₹101.10
₹2527.50
50
₹101.12
₹5055.89
100
₹89.91
₹8990.50
500
₹67.96
₹33982.34
1000
₹67.96
₹67964.69
