LVR040S
Manufacturer
Littelfuse
Description

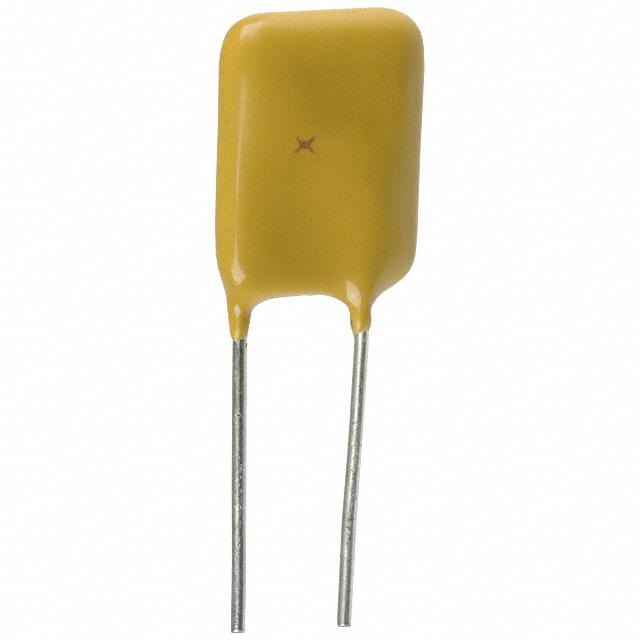

Polymeric PTC Resettable Fuse 120V (135V Int) 400 mA Ih Through Hole Radial, Disc
Datasheet
DownloadProduct Attributes
Type
Type
Voltage - Max
Hold Current
Trip Current
Current
Time to Trip
Resistance - Initial (Ri) (Min)
Resistance - Post Trip (R1) (Max)
Max Operating Temperature
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Lead Spacing
Description
Polymeric
120V (135V Int)
400 mA
900 mA
5.5 A
24 s
600 mOhms
1.9 Ohms
-20°C ~ 85°C
Through Hole
Radial, Disc
0.453" L x 0.150" W (11.50mm x 3.80mm)
0.768" (19.50mm)
0.200" (5.08mm)
₹108.34
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹108.34
₹108.34
10
₹99.02
₹990.22
25
₹99.02
₹2475.56
50
₹80.93
₹4046.65
100
₹73.54
₹7354.28
500
₹62.96
₹31482.16
1000
₹57.99
₹57988.55
Product Attributes
Type
Type
Voltage - Max
Hold Current
Trip Current
Current
Time to Trip
Resistance - Initial (Ri) (Min)
Resistance - Post Trip (R1) (Max)
Max Operating Temperature
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Lead Spacing
Description
Polymeric
120V (135V Int)
400 mA
900 mA
5.5 A
24 s
600 mOhms
1.9 Ohms
-20°C ~ 85°C
Through Hole
Radial, Disc
0.453" L x 0.150" W (11.50mm x 3.80mm)
0.768" (19.50mm)
0.200" (5.08mm)
