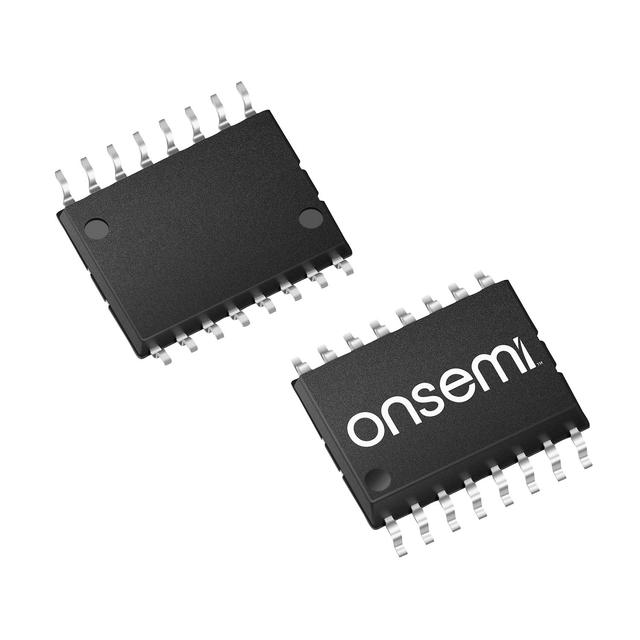

MMPQ3904
Manufacturer
onsemi
Description
Bipolar (BJT) Transistor Array 4 NPN (Quad) 40V 200mA 250MHz 1W Surface Mount 16-SOIC
Datasheet
DownloadProduct Attributes
Type
Transistor Type
Continuous Collector Current
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
DC Current Gain (hFE) (Min) @ Ic, Vce
Power - Max
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
4 NPN (Quad)
200mA
40V
300mV @ 5mA, 50mA
100 @ 10mA, 1V
1W
250MHz
-55°C ~ 150°C (TJ)
Surface Mount
16-SOIC (0.154", 3.90mm Width)
16-SOIC
₹313.80
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹313.80
₹313.80
10
₹174.62
₹1746.21
25
₹174.62
₹4365.51
50
₹160.21
₹8010.49
100
₹144.42
₹14442.36
500
₹116.48
₹58237.92
1000
₹111.67
₹111668.43
Product Attributes
Type
Transistor Type
Continuous Collector Current
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
DC Current Gain (hFE) (Min) @ Ic, Vce
Power - Max
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
4 NPN (Quad)
200mA
40V
300mV @ 5mA, 50mA
100 @ 10mA, 1V
1W
250MHz
-55°C ~ 150°C (TJ)
Surface Mount
16-SOIC (0.154", 3.90mm Width)
16-SOIC
