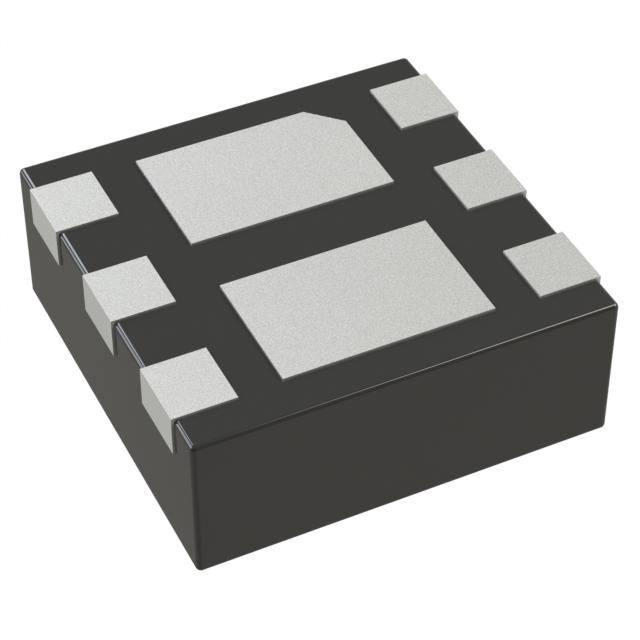

NSS60101DMTTBG
Manufacturer
onsemi
Description
Bipolar (BJT) Transistor Array 2 NPN (Dual) 60V 1A 180MHz 2.27W Surface Mount 6-WDFN (2x2)
Datasheet
DownloadProduct Attributes
Type
Transistor Type
Continuous Collector Current
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Power - Max
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
2 NPN (Dual)
1A
60V
180mV @ 100mA, 1A
100nA (ICBO)
120 @ 500mA, 2V
2.27W
180MHz
-55°C ~ 150°C (TJ)
Surface Mount
6-WDFN Exposed Pad
6-WDFN (2x2)
₹103.13
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹103.13
₹103.13
10
₹64.20
₹642.00
Product Attributes
Type
Transistor Type
Continuous Collector Current
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Power - Max
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
2 NPN (Dual)
1A
60V
180mV @ 100mA, 1A
100nA (ICBO)
120 @ 500mA, 2V
2.27W
180MHz
-55°C ~ 150°C (TJ)
Surface Mount
6-WDFN Exposed Pad
6-WDFN (2x2)
