NVF5P03T3G
Manufacturer
onsemi
Description

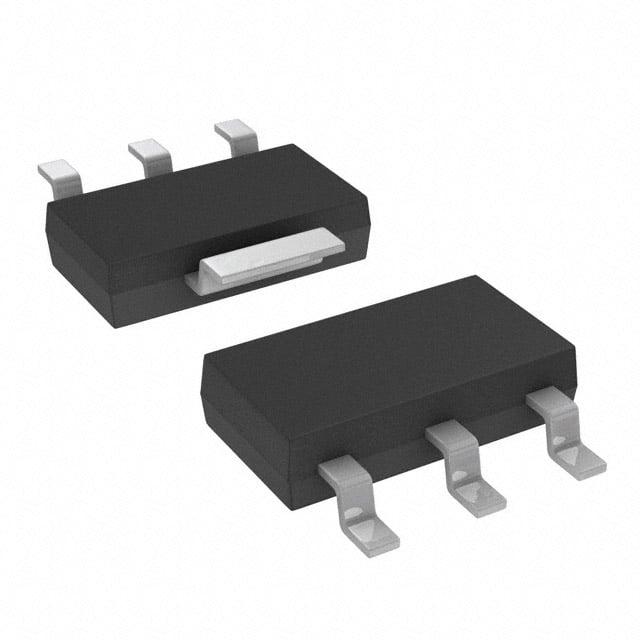

P-Channel 30 V 3.7A (Ta) 1.56W (Ta) Surface Mount SOT-223 (TO-261)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
30 V
3.7A (Ta)
4.5V, 10V
100mOhm @ 5.2A, 10V
3V @ 250µA
38 nC @ 10 V
±20V
950 pF @ 25 V
1.56W (Ta)
-55°C ~ 150°C (TJ)
Automotive
AEC-Q101
Surface Mount
SOT-223 (TO-261)
TO-261-4, TO-261AA
₹175.68
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹175.68
₹175.68
10
₹101.80
₹1017.97
25
₹101.80
₹2544.92
50
₹101.80
₹5089.84
100
₹73.01
₹7300.78
500
₹56.97
₹28485.78
1000
₹51.81
₹51807.30
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
30 V
3.7A (Ta)
4.5V, 10V
100mOhm @ 5.2A, 10V
3V @ 250µA
38 nC @ 10 V
±20V
950 pF @ 25 V
1.56W (Ta)
-55°C ~ 150°C (TJ)
Automotive
AEC-Q101
Surface Mount
SOT-223 (TO-261)
TO-261-4, TO-261AA
