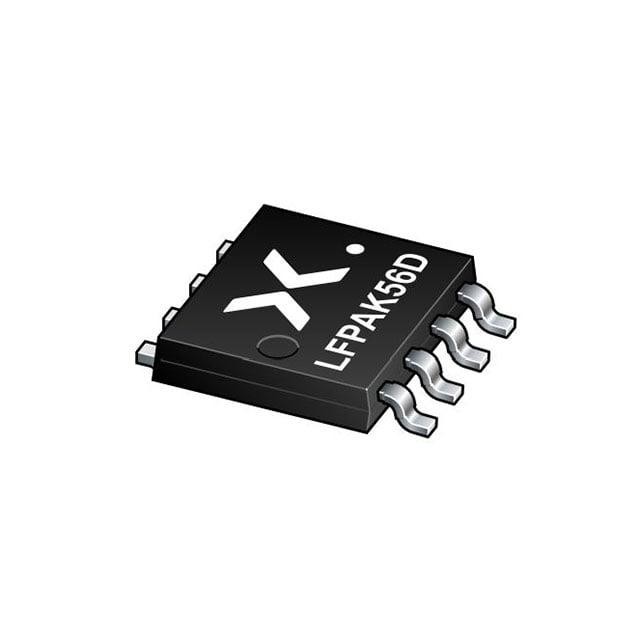

PSMN013-40VLDX
Manufacturer
Nexperia
Description
NEXPERIA - PSMN013-40VLDX - Dual MOSFET, N Channel, 40 V, 40 V, 42 A, 42 A, 0.0136 ohm
Datasheet
DownloadProduct Attributes
Type
Technology
Configuration
Drain to Source Voltage (Vdss)
Continuous Collector Current
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Input Capacitance
Power - Max
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
MOSFET (Metal Oxide)
2 N-Channel (Half Bridge)
40V
42A (Ta)
13.6mOhm @ 10A, 10V
2.2V @ 1mA
19.4nC @ 10V
1160pF @ 25V
46W (Ta)
-55°C ~ 175°C (TJ)
Surface Mount
SOT-1205, 8-LFPAK56
LFPAK56D
₹217.33
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹217.33
₹217.33
10
₹138.61
₹1386.11
25
₹138.61
₹3465.28
50
₹138.61
₹6930.56
100
₹93.47
₹9347.45
500
₹74.18
₹37092.30
1000
₹74.18
₹74184.60
Product Attributes
Type
Technology
Configuration
Drain to Source Voltage (Vdss)
Continuous Collector Current
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Input Capacitance
Power - Max
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
MOSFET (Metal Oxide)
2 N-Channel (Half Bridge)
40V
42A (Ta)
13.6mOhm @ 10A, 10V
2.2V @ 1mA
19.4nC @ 10V
1160pF @ 25V
46W (Ta)
-55°C ~ 175°C (TJ)
Surface Mount
SOT-1205, 8-LFPAK56
LFPAK56D
