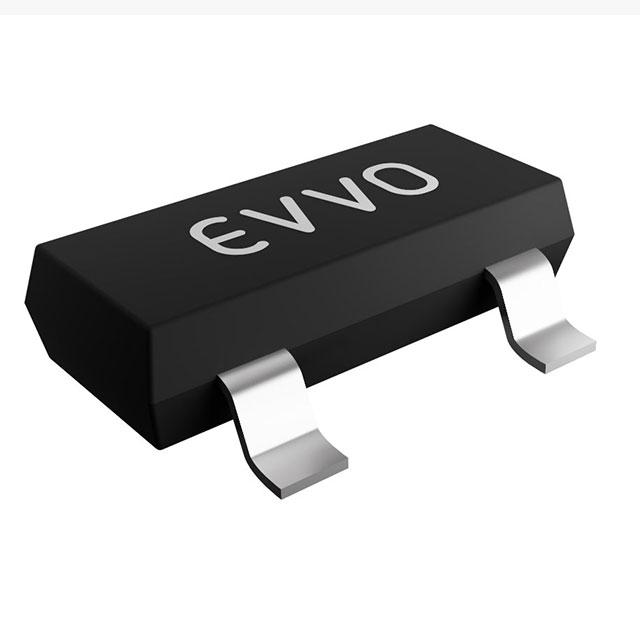

SI2301DS-EV
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
20 V
3.3A (Ta)
2.5V, 4.5V
70mOhm @ 3A, 4.5V
1V @ 250µA
4.1 nC @ 4.5 V
±12V
503 pF @ 10 V
1W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
SOT-23
TO-236-3, SC-59, SOT-23-3
₹49.20
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹30.44
₹304.43
25
₹30.48
₹762.09
50
₹21.87
₹1093.67
100
₹19.08
₹1907.53
500
₹14.13
₹7063.27
1000
₹14.13
₹14127.58
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
20 V
3.3A (Ta)
2.5V, 4.5V
70mOhm @ 3A, 4.5V
1V @ 250µA
4.1 nC @ 4.5 V
±12V
503 pF @ 10 V
1W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
SOT-23
TO-236-3, SC-59, SOT-23-3
