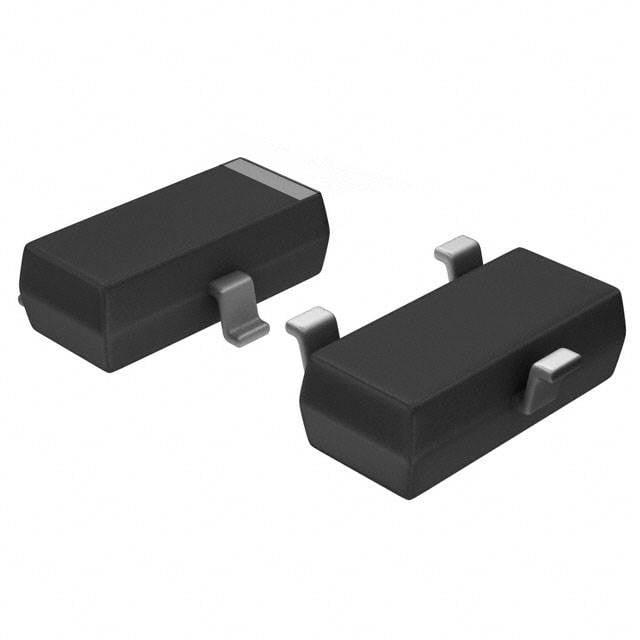

SI2304DDS-T1-BE3
Manufacturer
Vishay Siliconix
Description
N-Channel 30 V 3.3A (Ta), 3.6A (Tc) 1.1W (Ta), 1.7W (Tc) Surface Mount SOT-23-3 (TO-236)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
3.3A (Ta), 3.6A (Tc)
4.5V, 10V
60mOhm @ 3.2A, 10V
2.2V @ 250µA
6.7 nC @ 10 V
±20V
235 pF @ 15 V
1.1W (Ta), 1.7W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
SOT-23-3 (TO-236)
TO-236-3, SC-59, SOT-23-3
₹80.46
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹49.92
₹499.18
25
₹49.88
₹1246.91
50
₹36.18
₹1809.13
100
₹31.75
₹3175.45
500
₹23.91
₹11953.55
1000
₹23.45
₹23451.54
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
3.3A (Ta), 3.6A (Tc)
4.5V, 10V
60mOhm @ 3.2A, 10V
2.2V @ 250µA
6.7 nC @ 10 V
±20V
235 pF @ 15 V
1.1W (Ta), 1.7W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
SOT-23-3 (TO-236)
TO-236-3, SC-59, SOT-23-3
