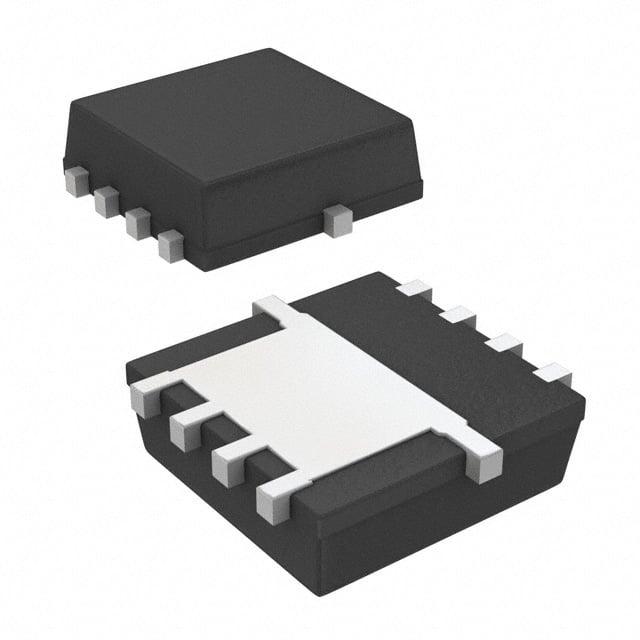

SIS427EDN-T1-GE3
Manufacturer
Vishay Siliconix
Description
P-Channel 30 V 50A (Tc) 3.7W (Ta), 52W (Tc) Surface Mount PowerPAK 1212-8
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
30 V
50A (Tc)
4.5V, 10V
10.6mOhm @ 11A, 10V
2.5V @ 250µA
66 nC @ 10 V
±25V
1930 pF @ 15 V
3.7W (Ta), 52W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PowerPAK® 1212-8
PowerPAK® 1212-8
₹147.85
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹147.85
₹147.85
10
₹68.57
₹685.67
25
₹68.57
₹1714.18
50
₹68.57
₹3428.35
100
₹60.67
₹6066.99
500
₹47.02
₹23511.58
1000
₹44.86
₹44862.08
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
30 V
50A (Tc)
4.5V, 10V
10.6mOhm @ 11A, 10V
2.5V @ 250µA
66 nC @ 10 V
±25V
1930 pF @ 15 V
3.7W (Ta), 52W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PowerPAK® 1212-8
PowerPAK® 1212-8
