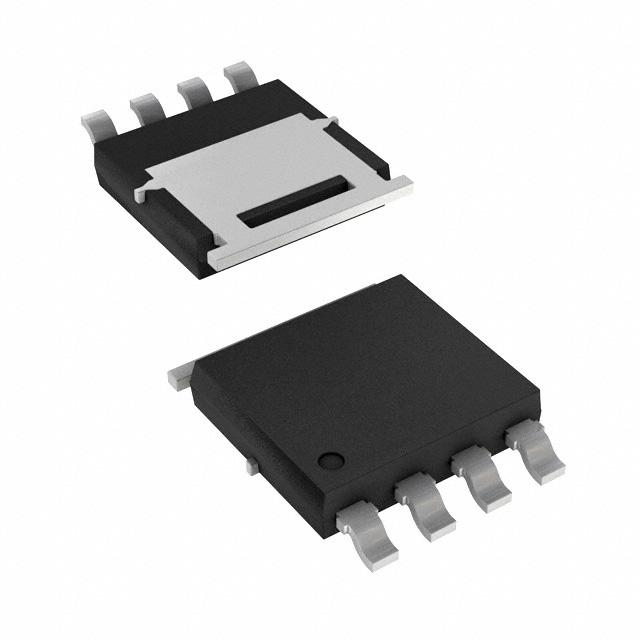

SQJ409EP-T1_BE3
Manufacturer
Vishay Siliconix
Description
P-Channel 40 V 60A (Tc) 68W (Tc) Surface Mount PowerPAK SO-8
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
40 V
60A (Tc)
4.5V, 10V
7mOhm @ 10A, 10V
2.5V @ 250µA
260 nC @ 10 V
±20V
11000 pF @ 25 V
68W (Tc)
-55°C ~ 175°C (TJ)
Automotive
AEC-Q101
Surface Mount
PowerPAK® SO-8
PowerPAK® SO-8
₹265.35
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹265.35
₹265.35
10
₹142.74
₹1427.37
25
₹142.74
₹3568.43
50
₹128.37
₹6418.73
100
₹114.94
₹11494.23
500
₹91.36
₹45680.46
1000
₹88.58
₹88576.94
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
40 V
60A (Tc)
4.5V, 10V
7mOhm @ 10A, 10V
2.5V @ 250µA
260 nC @ 10 V
±20V
11000 pF @ 25 V
68W (Tc)
-55°C ~ 175°C (TJ)
Automotive
AEC-Q101
Surface Mount
PowerPAK® SO-8
PowerPAK® SO-8
