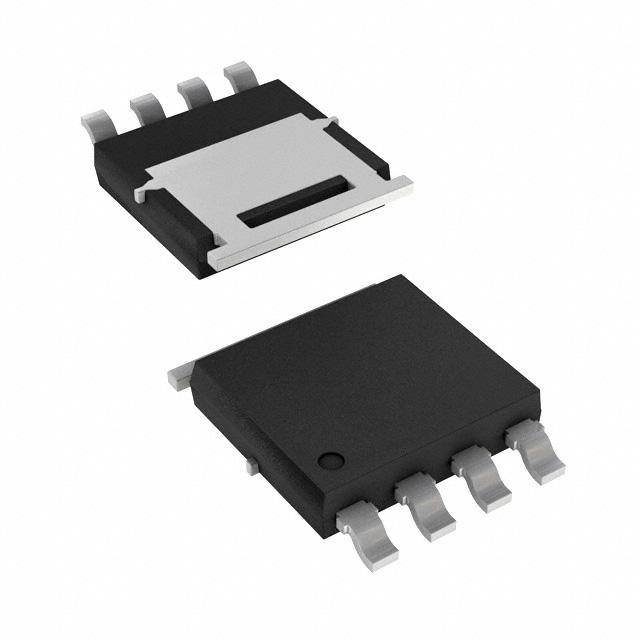

SQJ409EP-T1_GE3
Manufacturer
Vishay Siliconix
Description
VISHAY - SQJ409EP-T1_GE3 - Power MOSFET, P Channel, 40 V, 60 A, 7000 ohm, PowerPAK SO-8L, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
40 V
60A (Tc)
4.5V, 10V
7mOhm @ 10A, 10V
2.5V @ 250µA
260 nC @ 10 V
±20V
11000 pF @ 25 V
68W (Tc)
-55°C ~ 175°C (TJ)
Automotive
AEC-Q101
Surface Mount
PowerPAK® SO-8
PowerPAK® SO-8
₹180.37
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹180.37
₹180.37
10
₹131.76
₹1317.58
25
₹131.76
₹3293.96
50
₹131.76
₹6587.91
100
₹116.96
₹11696.43
500
₹88.43
₹44215.10
1000
₹88.43
₹88430.20
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
40 V
60A (Tc)
4.5V, 10V
7mOhm @ 10A, 10V
2.5V @ 250µA
260 nC @ 10 V
±20V
11000 pF @ 25 V
68W (Tc)
-55°C ~ 175°C (TJ)
Automotive
AEC-Q101
Surface Mount
PowerPAK® SO-8
PowerPAK® SO-8
