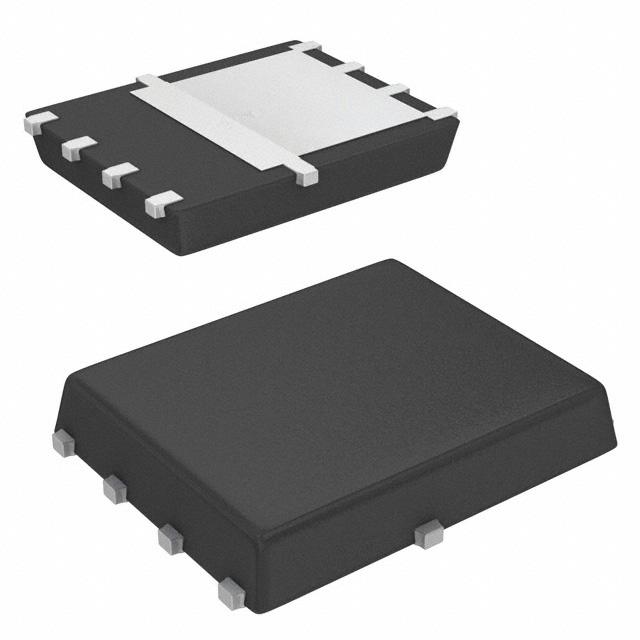

SQRS160EP-T1_GE3
Manufacturer
Vishay Siliconix
Description
N-Channel 60 V 373A (Tc) 270W (Tc) Surface Mount PowerPAK SO-8
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
60 V
373A (Tc)
10V
0.98mOhm @ 15A, 10V
3.2V @ 250µA
195 nC @ 10 V
±20V
12353 pF @ 25 V
270W (Tc)
-55°C ~ 175°C (TJ)
Automotive
AEC-Q101
Surface Mount
PowerPAK® SO-8
PowerPAK® SO-8
₹499.61
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹499.61
₹499.61
10
₹370.88
₹3708.75
25
₹370.88
₹9271.90
50
₹370.88
₹18543.79
100
₹309.70
₹30969.92
500
₹271.47
₹135733.48
1000
₹207.74
₹207742.26
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
60 V
373A (Tc)
10V
0.98mOhm @ 15A, 10V
3.2V @ 250µA
195 nC @ 10 V
±20V
12353 pF @ 25 V
270W (Tc)
-55°C ~ 175°C (TJ)
Automotive
AEC-Q101
Surface Mount
PowerPAK® SO-8
PowerPAK® SO-8
