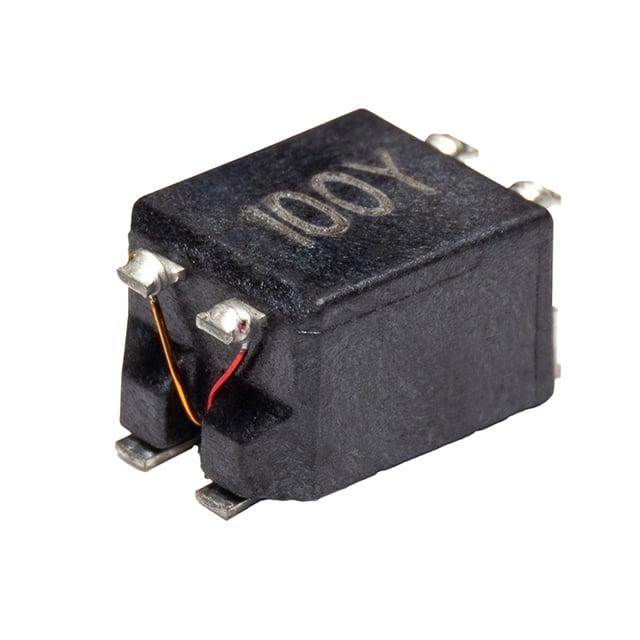

SRF9005A-100Y
Manufacturer
Bourns
Description
10 H @ 1 kHz 2 Line Common Mode Choke Surface Mount 200 Ohms @ 300 MHz 1.6A DCR 80mOhm
Datasheet
DownloadProduct Attributes
Type
Number of Lines
Impedance @ Frequency
Inductance @ Frequency
Max Current Rating
DC Resistance (DCR) (Max)
Voltage Rating (DC)
Max Operating Temperature
Ratings
Mounting Type
Size / Dimension
Height
Case/Package
Description
2
200 Ohms @ 300 MHz
10 µH @ 1 kHz
1.6A
80mOhm
80V
-40°C ~ 105°C
AEC-Q200
Surface Mount
0.362" L x 0.236" W (9.20mm x 6.00mm)
0.209" (5.30mm)
Horizontal, 4 PC Pad
₹242.16
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹242.16
₹242.16
10
₹200.10
₹2000.99
25
₹195.78
₹4894.38
50
₹184.62
₹9231.15
100
₹164.41
₹16441.43
500
₹146.10
₹73049.29
1000
₹133.83
₹133825.88
Product Attributes
Type
Number of Lines
Impedance @ Frequency
Inductance @ Frequency
Max Current Rating
DC Resistance (DCR) (Max)
Voltage Rating (DC)
Max Operating Temperature
Ratings
Mounting Type
Size / Dimension
Height
Case/Package
Description
2
200 Ohms @ 300 MHz
10 µH @ 1 kHz
1.6A
80mOhm
80V
-40°C ~ 105°C
AEC-Q200
Surface Mount
0.362" L x 0.236" W (9.20mm x 6.00mm)
0.209" (5.30mm)
Horizontal, 4 PC Pad
