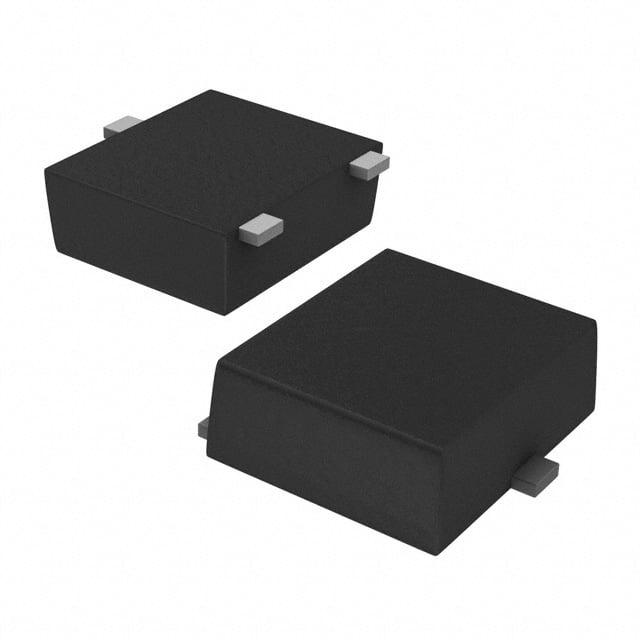

SSM3J132TU,LF
Manufacturer
Toshiba Semiconductor and Storage
Description
P-Channel 12 V 5.4A (Ta) 500mW (Ta) Surface Mount UFM
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
12 V
5.4A (Ta)
1.2V, 4.5V
17mOhm @ 5A, 4.5V
1V @ 1mA
33 nC @ 4.5 V
±6V
2700 pF @ 10 V
500mW (Ta)
150°C
Surface Mount
UFM
3-SMD, Flat Leads
₹95.71
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹59.67
₹596.69
25
₹59.67
₹1491.74
50
₹59.67
₹2983.47
100
₹38.54
₹3853.90
500
₹29.33
₹14667.23
1000
₹26.48
₹26479.70
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
12 V
5.4A (Ta)
1.2V, 4.5V
17mOhm @ 5A, 4.5V
1V @ 1mA
33 nC @ 4.5 V
±6V
2700 pF @ 10 V
500mW (Ta)
150°C
Surface Mount
UFM
3-SMD, Flat Leads
