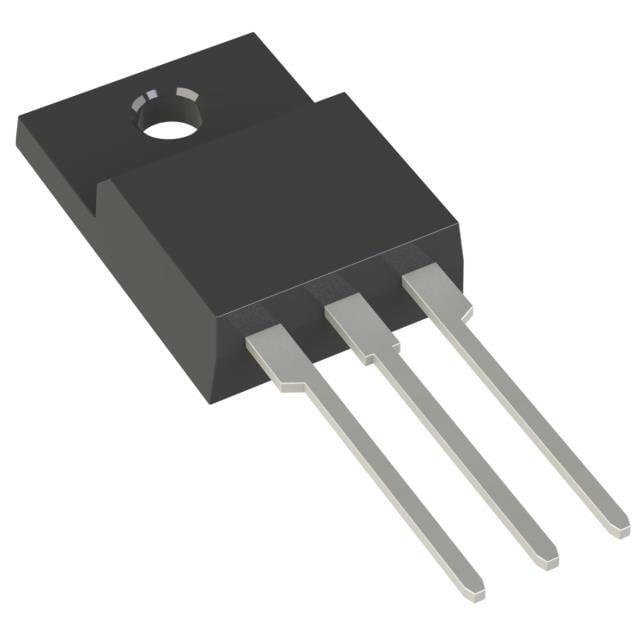

STF16N60M6
Manufacturer
STMicroelectronics
Description
STMICROELECTRONICS - STF16N60M6 - Power MOSFET, N Channel, 600 V, 12 A, 0.26 ohm, TO-220FP, Through Hole
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
12A (Tc)
10V
320mOhm @ 6A, 10V
4.75V @ 250µA
16.7 nC @ 10 V
±25V
575 pF @ 100 V
25W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-220FP
TO-220-3 Full Pack
₹429.84
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹429.84
₹429.84
10
₹217.81
₹2178.14
25
₹217.81
₹5445.34
50
₹218.36
₹10917.78
100
₹197.30
₹19730.15
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
12A (Tc)
10V
320mOhm @ 6A, 10V
4.75V @ 250µA
16.7 nC @ 10 V
±25V
575 pF @ 100 V
25W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-220FP
TO-220-3 Full Pack
