STI24N60M2
Manufacturer
STMicroelectronics
Description

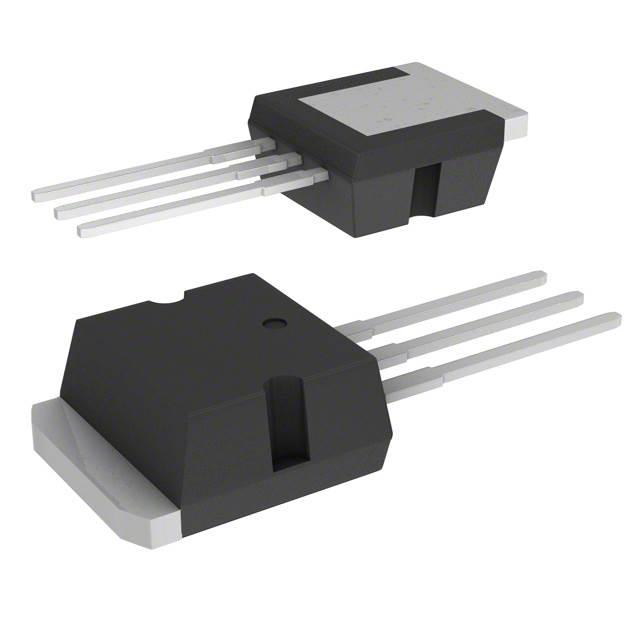

N-Channel 600 V 18A (Tc) 150W (Tc) Through Hole TO-262 (I2PAK)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
18A (Tc)
10V
190mOhm @ 9A, 10V
4V @ 250µA
29 nC @ 10 V
±25V
1060 pF @ 100 V
150W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-262 (I2PAK)
TO-262-3 Long Leads, I2PAK, TO-262AA
₹387.96
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹387.96
₹387.96
10
₹388.14
₹3881.43
25
₹388.14
₹9703.58
50
₹192.53
₹9626.72
100
₹173.59
₹17359.38
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
18A (Tc)
10V
190mOhm @ 9A, 10V
4V @ 250µA
29 nC @ 10 V
±25V
1060 pF @ 100 V
150W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-262 (I2PAK)
TO-262-3 Long Leads, I2PAK, TO-262AA
