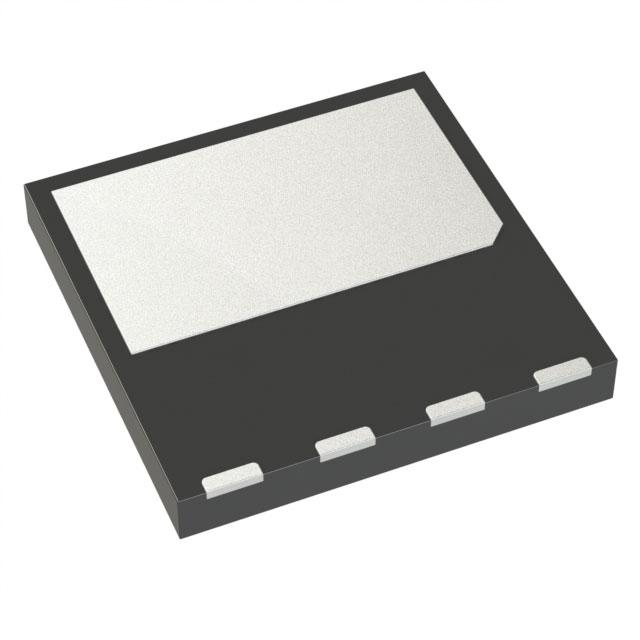

STL52N60DM6
Manufacturer
STMicroelectronics
Description
STMICROELECTRONICS - STL52N60DM6 - Power MOSFET, N Channel, 600 V, 45 A, 0.072 ohm, PowerFLAT HV, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
45A (Tc)
10V
84mOhm @ 22.5A, 10V
4.75V @ 250µA
52 nC @ 10 V
±25V
2468 pF @ 100 V
174W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PowerFlat™ (8x8) HV
4-PowerVDFN
₹882.54
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹882.54
₹882.54
10
₹590.44
₹5904.38
25
₹590.44
₹14760.94
50
₹590.44
₹29521.87
100
₹497.20
₹49720.47
500
₹422.62
₹211310.68
1000
₹401.49
₹401490.97
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
45A (Tc)
10V
84mOhm @ 22.5A, 10V
4.75V @ 250µA
52 nC @ 10 V
±25V
2468 pF @ 100 V
174W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PowerFlat™ (8x8) HV
4-PowerVDFN
