STN4NF06L
Manufacturer
STMicroelectronics
Description

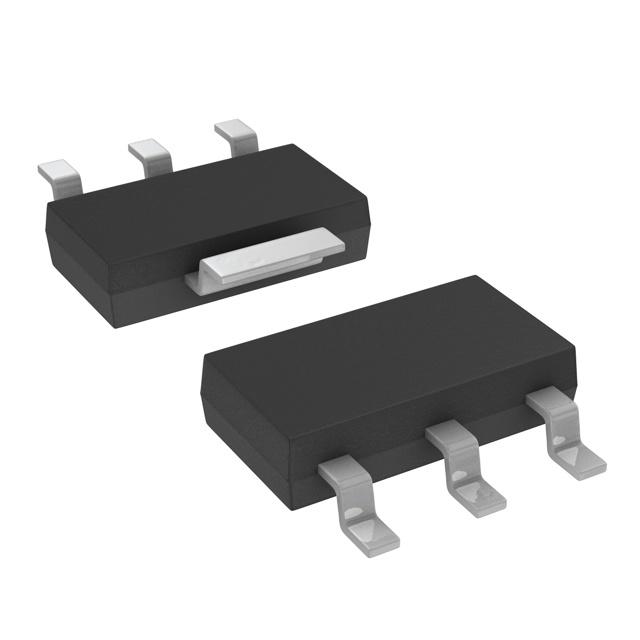

STMICROELECTRONICS - STN4NF06L - Power MOSFET, N Channel, 60 V, 4 A, 0.07 ohm, SOT-223, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
60 V
4A (Tc)
5V, 10V
100mOhm @ 1.5A, 10V
2.8V @ 250µA
9 nC @ 5 V
±16V
340 pF @ 25 V
3.3W (Tc)
-55°C ~ 150°C (TJ)
Automotive
AEC-Q101
Surface Mount
SOT-223
TO-261-4, TO-261AA
₹174.61
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹174.61
₹174.61
10
₹81.20
₹812.00
25
₹81.20
₹2030.00
50
₹72.06
₹3603.11
100
₹72.06
₹7206.21
500
₹56.09
₹28047.15
1000
₹50.52
₹50518.20
