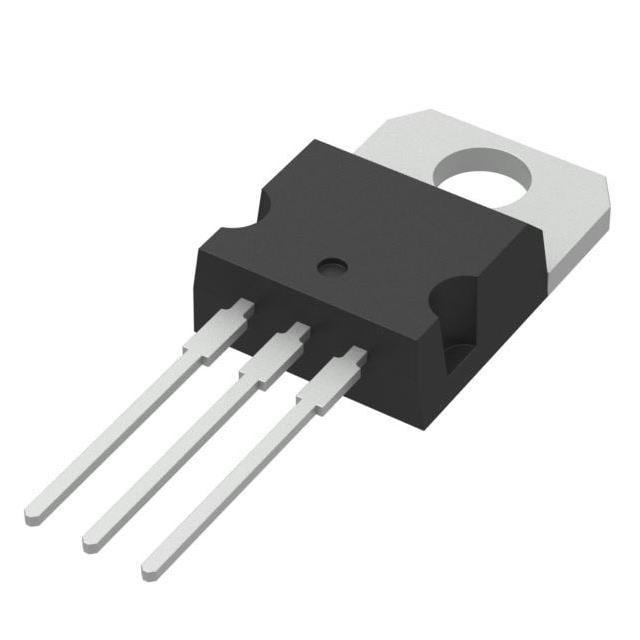

STP65N150M9
Manufacturer
STMicroelectronics
Description
STMICROELECTRONICS - STP65N150M9 - Power MOSFET, N Channel, 650 V, 20 A, 0.128 ohm, TO-220, Through Hole
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
650 V
20A (Tc)
10V
150mOhm @ 10A, 10V
4.2V @ 250µA
32 nC @ 10 V
±30V
1239 pF @ 400 V
140W (Tc)
150°C (TJ)
Through Hole
TO-220
TO-220-3
₹467.56
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹467.56
₹467.56
10
₹306.54
₹3065.38
25
₹306.54
₹7663.43
50
₹306.54
₹15326.88
100
₹285.66
₹28566.06
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
650 V
20A (Tc)
10V
150mOhm @ 10A, 10V
4.2V @ 250µA
32 nC @ 10 V
±30V
1239 pF @ 400 V
140W (Tc)
150°C (TJ)
Through Hole
TO-220
TO-220-3
