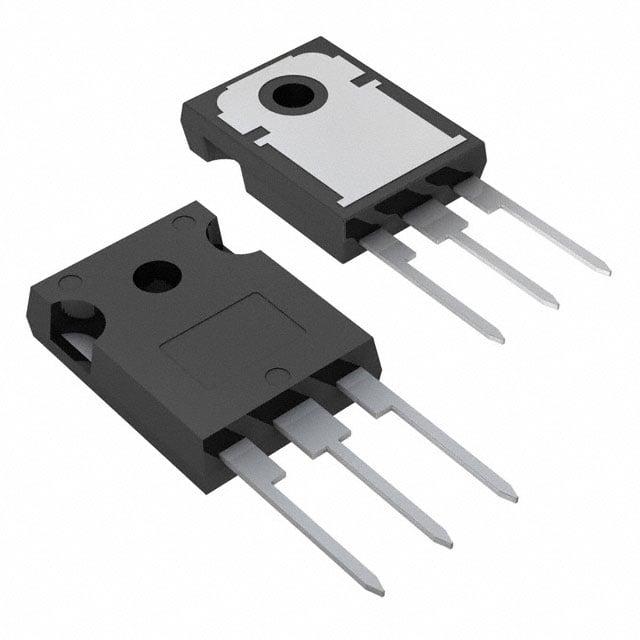

STW56N60DM2
Manufacturer
STMicroelectronics
Description
STMICROELECTRONICS - STW56N60DM2 - Power MOSFET, Mdmesh DM2, N Channel, 600 V, 50 A, 0.052 ohm, TO-247, Through Hole
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
50A (Tc)
10V
60mOhm @ 25A, 10V
5V @ 250µA
90 nC @ 10 V
±25V
4100 pF @ 100 V
360W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-247-3
TO-247-3
₹1066.10
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1066.10
₹1066.10
10
₹967.17
₹9671.69
25
₹967.17
₹24179.24
50
₹917.69
₹45884.59
100
₹868.23
₹86822.75
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
600 V
50A (Tc)
10V
60mOhm @ 25A, 10V
5V @ 250µA
90 nC @ 10 V
±25V
4100 pF @ 100 V
360W (Tc)
-55°C ~ 150°C (TJ)
Through Hole
TO-247-3
TO-247-3
