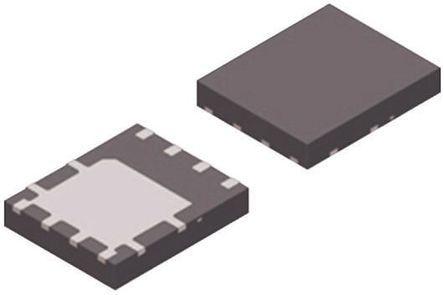

FDMS3602S
Manufacturer
onsemi
Description
Asymmetric Dual N-Channel MOSFET PowerTrench Power Stage, 25V
Datasheet
DownloadProduct Attributes
Type
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Elements
Number of Pins
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Turn-Off Delay Time
Weight
Width
Description
26 A
25 V
5.6 mΩ
25 V
3.2 ns
20 V
1.05 mm
1.68 nF
Lead Free
5 mm
Obsolete (Last Updated: 6 months ago)
OBSOLETE (Last Updated: 6 months ago)
150 °C
1 W
-55 °C
Surface Mount
1.8 V
2
8
2.5 W
No
5.6 mΩ
No SVHC
5.6 MΩ
4.2 ns
Compliant
31 ns
90 mg
6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹293.44
Total Price
₹293.44
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹293.44
₹293.44
10
₹214.12
₹2141.19
25
₹214.08
₹5352.10
