IRFP460APBF
Manufacturer
Vishay
Description

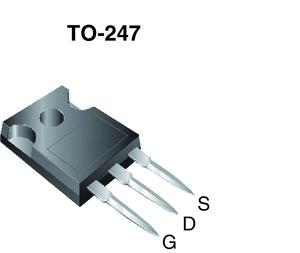

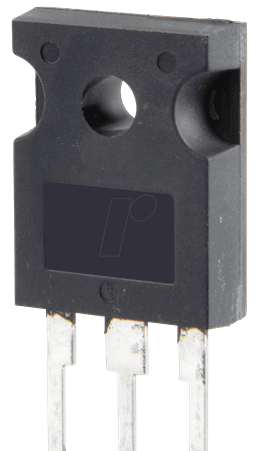

Single N-Channel 500 V 0.27 Ohms Flange Mount Power Mosfet - TO-247
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Weight
Width
Description
TO-247-3
20 A
20 A
500 V
270 mΩ
500 V
Single
39 ns
30 V
25.11 mm
3.1 nF
Lead Free
15.87 mm
150 °C
150 °C
280 W
-55 °C
Through Hole
2 V
1
1
3
Bulk
280 W
No
270 mΩ
Unknown
270 mΩ
55 ns
Compliant
4 V
45 ns
18 ns
500 V
38.000013 g
5.31 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹416.74
Total Price
₹416.74
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹416.74
₹416.74
10
₹359.68
₹3596.81
25
₹318.30
₹7957.45
50
₹294.01
₹14700.25
100
₹281.63
₹28162.74
500
₹281.63
₹140813.71
1000
₹280.68
₹280675.98
