STD7NM60N
Manufacturer
STMicroelectronics
Description

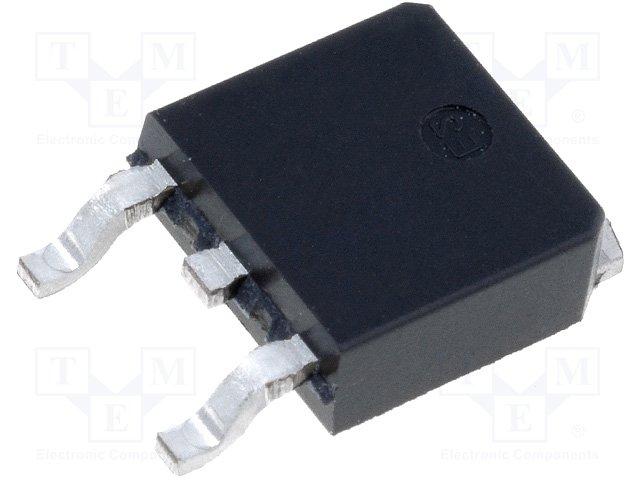

N-channel 600 V, 5 A, 0.84 Ohm MDmesh(TM) II Power MOSFET in DPAK package
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
DPAK
5 A
600 V
600 V
Single
12 ns
25 V
2.4 mm
363 pF
Lead Free
6.6 mm
Production (Last Updated: 4 years ago)
150 °C
45 W
-55 °C
Surface Mount
3
Tape and Reel
45 W
No
900 mΩ
No
900 mΩ
10 ns
Compliant
8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080
3 V
26 ns
7 ns
6.2 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹229.73
Total Price
₹229.73
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹229.73
₹229.73
10
₹164.86
₹1648.62
25
₹164.81
₹4120.22
50
₹163.88
₹8193.78
100
₹117.73
₹11772.67
500
₹101.13
₹50563.97
1000
₹88.44
₹88436.34
